09454001100

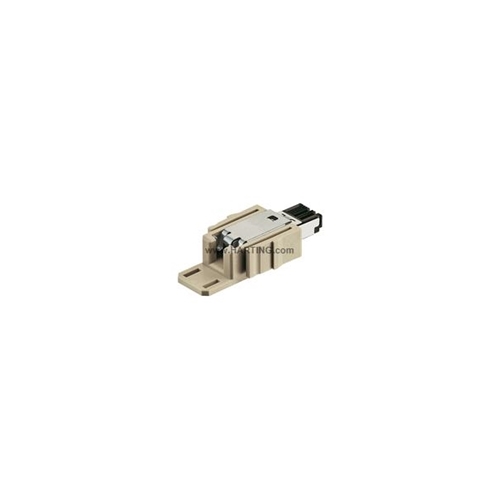

HARTING HAN MOD PLUG INSERT

Harting

Your cart total:

.

Checkout

0

09454001100








































Gender:male
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Please contact our customer service
Terminal Method, Cable, Copper:IDC contacts, without tools
Transmission Characteristics:Category 5 / Class D up to 100 MHz, according to ISO/IEC 11 801:2002 and EN 50 173-1
Series:Han-Modular
Specification:Cat. 5
Number of Contacts:4
Cord Diameter, Max.:<= 1.6 mm
Contact Identification, Min.:1
Contact Identification, Max.:4
Wire Gauge AWG, Stranded, Min.:AWG 24
Wire Gauge AWG, Stranded, Max.:AWG 22
Wire Gauge AWG, Solid, Min.:AWG 23
Wire Gauge AWG, Solid, Max.:AWG 22
Rated Current:1 A
Rated Voltage:50 V
Rated Impulse Voltage:0.8 kV
Pollution Degree:3
Colour, Insert:RAL 7032 (light grey)
Material, Insert:polyamide
Type of Module:Han RJ Industrial module
Type of Module, Amendment:RJ Industrial RJ45 connector set
Flammability Insert Acc. to UL 94:V 0
Rated Voltage Acc. to UL:30 V
Approval UL:Yes
Approval GL:Yes
Specification:IEC 60 603-7DIN EN 60 664-1DIN EN 61 984
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:70 C
Insulation Resistance:>= 10 Ohm
Exponent:10
Data Rate Copper:10 Mbit/s100 Mbit/s
Make :Harting
Product Range :Han-Modular RJ45 Cat5 plug 4p IDC
Height (mm):23.3
Width (mm):57.3
Weight:44.8 g

No extended details available.
