09400060311

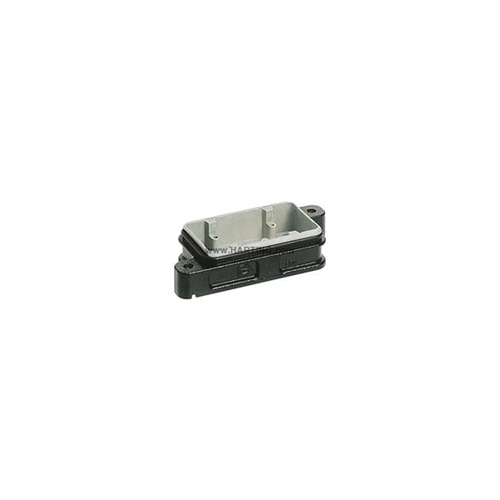

HARTING BULK HEAD HOUSING HPR

Harting

Your cart total:

.

Checkout

0

09400060311




























RoHS Conformity:Yes
Size:6 B
Locking Type:Screw locking
Type of Hood - Housing:Housings, bulkhead mounting
Series:Han HPR
Corrosion Resistance:ASTM B117-09 (500 h)
Material, Screwing:stainless steel
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 9005 (black)
Material, Hood - Housing:Aluminium die-cast, corrosion resistant
Housing:Yes
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65 / IP68 / IP69K
Screw Size:M6
Tightening Torque, Locking:4 Nm
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han 6 HPR Base Panel Screw locking
Height (mm):28.9
Width (mm):132
Depth (mm):48
Weight:152.4 g

No extended details available.
