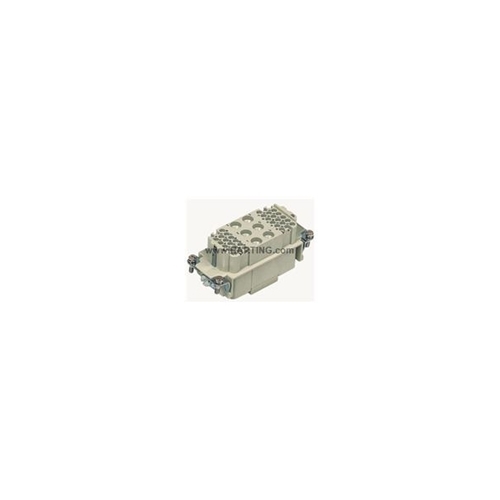

09380423101


HARTING INSERT

Your cart total:

0

09380423101
























































Combination of Contacts:01/06/1936
Gender:female
Insert:Han K 6/36
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Yes
Size:16 B
Test Voltage:3 kV
Test Voltage, Signal Area:2 kV
Series:Han-Com
Termination Method:Crimp/crimp terminal
Hint:Order crimp contacts separately.
Rated Current, Pollution Degree 3, Signal Area:10 A
Rated Voltage, Pollution Degree 3, Signal Area:160 V
Rated Impulse Voltage, Pollution Degree 3, Signal Area:2.5 kV
Pollution Degree 3, Signal Area:3
Rated Current, Pollution Degree 2, Signal Area:10 A
Rated Voltage, Pollution Degree 2, Signal Area:250 V
Rated Impulse Voltage, Pollution Degree 2, Signal Area:4 kV
Pollution Degree 2, Signal Area:2
Core Insulation Diameter, Max.:5 mm
Contact Resistance, Signal Area:<= 3 mOhm
Contact Identification, Min.:1
Contact Identification, Max.:6
Contact Identification, Min., Signal Area:11
Contact Identification, Max., Signal Area:46
Rated Current:40 A
Rated Voltage:690 V
Rated Impulse Voltage:8 kV
Pollution Degree:3
Colour, Insert:RAL 7032 (light grey)
Material, Insert:polycarbonate
Material, Contact, Signal Area:Copper alloy
Surface, Contacts, Signal Area:silver plated contactsgold plated contacts
Coat Thickness, Signal Area:3 µm Ag2 µm Au over 3 µm Ni
Flammability Insert Acc. to UL 94:V 0
Rated Voltage Acc. to CSA:300 V
Rated Voltage Acc. to CSA, Signal Area:300 V
Rated Voltage Acc. to UL, Signal Area:600 V
Rated Voltage Acc. to UL:600 V
Approval UL:Yes
Approval CSA:Yes
Approval GL:Yes
Specification:DIN EN 60 664-1DIN EN 61 984
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make:Harting
Product Range :Han K6/36 insert female
Height (mm):34
Width (mm):84.5
Depth (mm):41.5
Net Weight:77.3 g
