| Combination of Contacts: | 6/36 |
| Gender: | male |
| Insert: | Han K 6/36 |
| Mechanical Working Life - Mating Cycles: | >= 500 |
| RoHS Conformity: | Yes |
| Size: | 16 B |
| Test Voltage: | 3 kV |
| Test Voltage, Signal Area: | 2 kV |
| Series: | Han-Com |
| Termination Method: | Crimp/crimp terminal |
| Hint: | Order crimp contacts separately. |
| Rated Current, Pollution Degree 3, Signal Area: | 10 A |
| Rated Voltage, Pollution Degree 3, Signal Area: | 160 V |
| Rated Impulse Voltage, Pollution Degree 3, Signal Area: | 2.5 kV |
| Pollution Degree 3, Signal Area: | 3 |
| Rated Current, Pollution Degree 2, Signal Area: | 10 A |
| Rated Voltage, Pollution Degree 2, Signal Area: | 250 V |
| Rated Impulse Voltage, Pollution Degree 2, Signal Area: | 4 kV |
| Pollution Degree 2, Signal Area: | 2 |
| Core Insulation Diameter, Max.: | 5 mm |
| Contact Resistance, Signal Area: | <= 3 mOhm |
| Contact Identification, Min.: | 1 |
| Contact Identification, Max.: | 6 |
| Contact Identification, Min., Signal Area: | 11 |
| Contact Identification, Max., Signal Area: | 46 |
| Rated Current: | 40 A |
| Rated Voltage: | 690 V |
| Rated Impulse Voltage: | 8 kV |
| Pollution Degree: | 3 |
| Colour, Insert: | RAL 7032 (light grey) |
| Material, Insert: | polycarbonate |
| Material, Contact, Signal Area: | Copper alloy |
| Surface, Contacts, Signal Area: | silver plated contactsgold plated contacts |
| Coat Thickness, Signal Area: | 3 µm Ag2 µm Au over 3 µm Ni |
| Flammability Insert Acc. to UL 94: | V 0 |
| Rated Voltage Acc. to CSA: | 300 V |
| Rated Voltage Acc. to CSA, Signal Area: | 300 V |
| Rated Voltage Acc. to UL, Signal Area: | 600 V |
| Rated Voltage Acc. to UL: | 600 V |
| Approval UL: | Yes |
| Approval CSA: | Yes |
| Approval GL: | Yes |
| Specification: | DIN EN 60 664-1DIN EN 61 984 |
| Limiting Temperature, Min.: | -40 C |
| Limiting Temperature, Max.: | 125 C |
| Insulation Resistance: | >= 10 Ohm |
| Exponent: | 10 |
| Protective Earth Conductor (PE): | Yes |
| Make: | Harting |

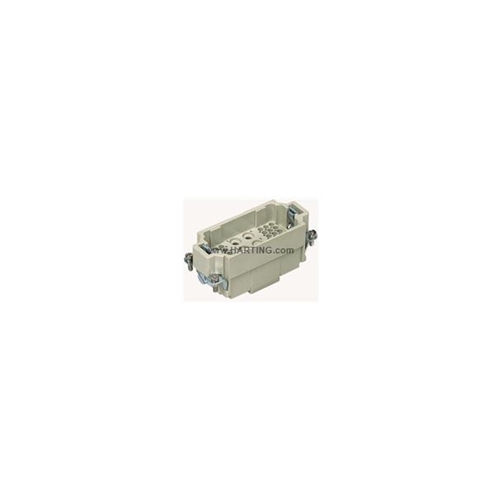

| Product Range : | Han K 6/36 Pos. M Insert Crimp |
| Height (mm): | 34 |
| Width (mm): | 84.5 |
| Depth (mm): | 39 |
| Net Weight: | 66.8 g |
