| Combination of Contacts: | 8/24 |
| Gender: | male |
| Insert: | Han K 8/24 |
| Mechanical Working Life - Mating Cycles: | >= 500 |
| RoHS Conformity: | Please contact our customer service |
| Size: | 10 B |
| Test Voltage: | 3 kV |
| Test Voltage, Signal Area: | 2 kV |
| Series: | Han-Com |
| Termination Method: | Crimp terminal |
| Hint: | Order crimp contacts separately. |
| Rated Current, Pollution Degree 3, Signal Area: | 10 A |
| Rated Voltage, Pollution Degree 3, Signal Area: | 160 V |
| Rated Impulse Voltage, Pollution Degree 3, Signal Area: | 2.5 kV |
| Pollution Degree 3, Signal Area: | 3 |
| Contact Identification, Min.: | 1 |
| Contact Identification, Max.: | 8 |
| Contact Identification, Min., Signal Area: | 9 |
| Contact Identification, Max., Signal Area: | 32 |
| Rated Current: | 16 A |
| Rated Voltage Conductor - Ground: | 230 V |
| Rated Voltage Conductor - Conductor: | 400 V |
| Rated Impulse Voltage: | 4 kV |
| Pollution Degree: | 3 |
| Colour, Insert: | RAL 7032 (light grey) |
| Material, insert:: | polyamide |
| Flammability Insert Acc. to UL 94: | HB |
| Rated Voltage Acc. to CSA, Signal Area: | 300 V |
| Rated Voltage Acc. to UL, Signal Area: | 600 V |
| Rated Voltage Acc. to UL: | 600 V |
| Approval UL: | Yes |
| Approval CSA: | Yes |
| Approval GL: | Yes |
| Specification: | DIN EN 60 664-1DIN EN 61 984 |
| Limiting Temperature, Min.: | -40 C |
| Limiting Temperature, Max.: | 125 C |
| Insulation Resistance: | >= 10 Ohm |
| Exponent: | 10 |
| Protective Earth Conductor (PE): | Yes |
| Make: | Harting |

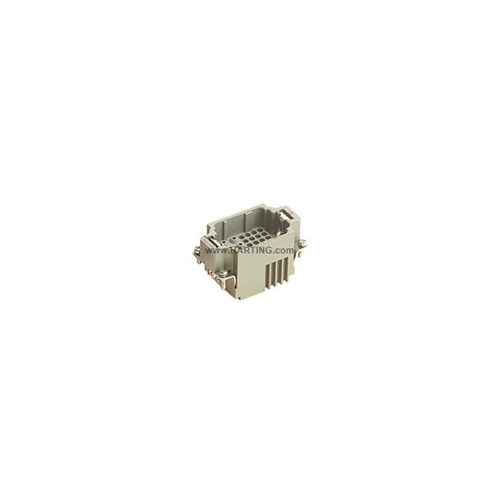

| Product Range : | Han K 8/24 Pos. M Insert Crimp |
| Height (mm): | 34 |
| Width (mm): | 64 |
| Depth (mm): | 35.7 |
| Net Weight: | 53 g |
