| Combination of Contacts: | 6/6 |
| Gender: | Female |

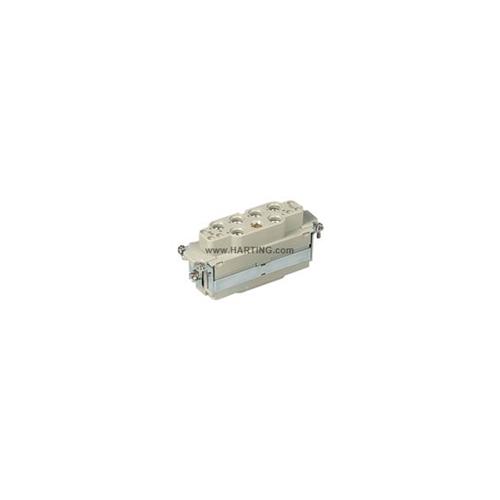

| Insert: | Han K 6/6 |
| Mechanical Working Life - Mating Cycles: | >= 500 |
| RoHS Conformity: | Yes |
| Size: | 24 B |
| Series: | Han-Com |
| Termination Method: | Axial screw terminal / Screw terminal |
| Contact Resistance: | <= 0.5 mOhm |
| Rated Current, Pollution Degree 3, Signal Area: | 16 A |
| Rated Voltage, Pollution Degree 3, Signal Area: | 400 V |
| Rated Impulse Voltage, Pollution Degree 3, Signal Area: | 6 kV |
| Pollution Degree 3, Signal Area: | 3 |
| Core Insulation Diameter, Max.: | 11.4 mm |
| Contact Resistance, Signal Area: | <= 3 mOhm |
| Contact Identification, Min.: | 1 |
| Contact Identification, Max.: | 6 |
| Contact Identification, Min., Signal Area: | 11 |
| Contact Identification, Max., Signal Area: | 16 |
| Wire Gauge mm² Min.: | 16 mm2 |
| Wire Gauge, Max: | 35 mm2 |
| Wire Gauge AWG, Min.: | AWG 5 |
| Wire Gauge AWG, Max.: | AWG 2 |
| Wire Gauge, Min., Signal Area: | 0.2 mm2 |
| Wire Gauge, Max., Signal Area: | 2.5 mm2 |
| Wire Gauge AWG, Min., Signal Area: | AWG 24 |
| Wire Gauge AWG, Max., Signal Area: | AWG 13 |
| Rated Current: | 100 A |
| Rated Voltage: | 690 V |
| Rated Impulse Voltage: | 8 kV |
| Pollution Degree: | 3 |
| Colour, Insert: | RAL 7032 (light grey) |
| Material, Contact: | copper alloy |
| Material, Insert: | polycarbonate |
| Surface, Contacts: | silver plated contacts |
| Material, Contact, Signal Area: | copper alloy |
| Surface, Contacts, Signal Area: | silver plated contacts |
| Coat Thickness, Signal Area: | 3 µm Ag |
| Flammability Insert Acc. to UL 94: | V 0 |
| Rated Current Acc. to CSA: | 100 A |
| Rated Voltage Acc. to CSA: | 600 V |
| Rated Voltage Acc. to CSA, Signal Area: | 600 V |
| Rated Current Acc. to CSA, Signal Area: | 15 A |
| Rated Voltage Acc. to UL, Signal Area: | 300 V |
| Rated Voltage Acc. to UL: | 600 V |
| Approval UL: | Yes |
| Approval CSA: | Yes |
| Approval GL: | Yes |
| Specification: | DIN EN 60 664-1DIN EN 61 984 |
| Limiting Temperature, Min.: | -40 C |
| Limiting Temperature, Max.: | 125 C |
| Hex Key: | SW 4 |
| Stripping Length, Min: | 13 mm |
| Tightening Torque, Signal Area: | 0.8 Nm |
| Stripping Length, Signal Area: | 7.5 mm |
| Insulation Resistance: | >= 10 Ohm |
| Exponent: | 10 |
| Protective Earth Conductor (PE): | Yes |
| Make : | Harting |
