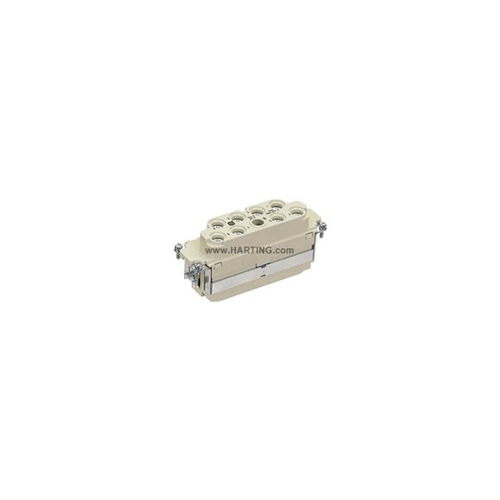

09380082653


HARTING INSERT

Harting

Your cart total:

.

Checkout

0

09380082653















































Combination of Contacts:8/0
Gender:Male
Insert:Han K 8/0
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Please contact our customer service
Size:24 B
Series:Han-Com
Termination Method:Axial screw terminal
Contact Resistance:<= 0.5 mOhm
Core Insulation Diameter, Max.:11.4 mm
Contact Identification, Min.:1
Contact Identification, Max.:8
Wire Gauge mm² Min.:10 mm2
Wire Gauge, Max.:25 mm2
Wire Gauge AWG, Min.:AWG 7
Wire Gauge AWG, Max.:AWG 3
Rated Current:100 A
Rated Voltage:690 V
Rated Impulse Voltage:8 kV
Pollution Degree:3
Colour, Insert:RAL 7032 (light grey)
Material, Contact:copper alloy
Material, Insert:polycarbonate
Surface, Contacts:silver plated contacts
Flammability Insert Acc. to UL 94:V 0
Rated Current Acc. to UL:82 A
Rated Voltage Acc. to UL:600 V
Approval UL:Yes
Approval CSA:Yes
Approval UL-CSA:Yes
Approval GL:Yes
Specification:DIN EN 60 664-1DIN EN 61 984
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Hex Key:SW 4
Stripping Length, Min:13 mm
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make:Harting
Product Range :Han K 8/0 Pos. M Insert 100 Amp. 10-25mm
Height (mm):34
Width (mm):110.85
Depth (mm):47.95
Net Weight:306.8 g
