09380062611

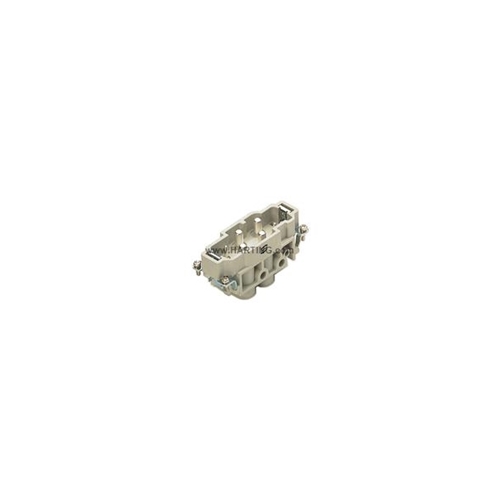

HARTING MALE 6PIN INSERT

Harting

Your cart total:

.

Checkout

0

09380062611








































Combination of Contacts:4/0
Gender:male
Insert:Han K 4/0
Mechanical Working Life - Mating Cycles:< 500
RoHS Conformity:Yes
Size:16 B
Series:Han-Com
Termination Method:Screw terminal
Contact Identification, Min.:1
Contact Identification, Max.:4
Wire Gauge mm² Min.:1.5 mm2
Wire Gauge, Max.:16 mm2
Rated Current:80 A
Rated Voltage:830 V
Rated Impulse Voltage:8 kV
Pollution Degree:3
Colour, Insert:RAL 7032 (light grey)
Material, Insert:polycarbonate
Flammability Insert Acc. to UL 94:V 0
Rated Voltage Acc. to CSA:300 V
Rated Voltage Acc. to UL:600 V
Rated Current Acc. to VDE:80 A
Approval UL:Yes
Approval CSA:Yes
Approval GL:Yes
Specification:DIN EN 60 664-1DIN EN 61 984
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Stripping Length, Min:14 mm
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make :Harting
Product Range :Han K 4/0 Pin Male Insert
Height (mm):34
Width (mm):84.5
Depth (mm):42
Net Weight:115.8 g

No extended details available.
