09370160271

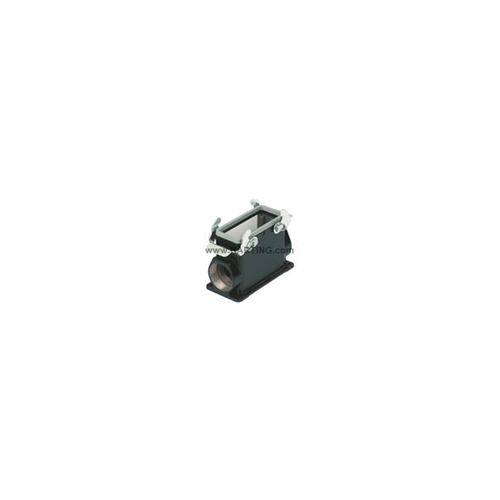

HARTING HAN M BASE SURFACE HC 2 LEVERS 2

ENTRIES PG29

Harting

Your cart total:

.

Checkout

0

09370160271































RoHS Conformity:Please contact our customer service
Size:16 B
Locking Type:2 levers on the housing
Material, Locking Lever:Stainless steel
Locking Lever:double locking lever
Type of Hood - Housing:Housings, surface mounting
Series:Han M
Corrosion Resistance:ASTM B117-09 (500 h)
Surface, Hood - Housing:powder-coated
Material, Seal:FPM
Colour, Hood - Housing:RAL 9005 (black)
Material, Hood - Housing:aluminium die-cast
Housing:Yes
No. of Cable Entries:2
Size, Hood - Housing:Pg 29
Cable Entry:side entry
Style:High construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range:Han M Base Surface HC 2 Levers 2 Entries
Height (mm):90.8
Width (mm):117
Depth (mm):57
Net Weight:409 g
