09360083101

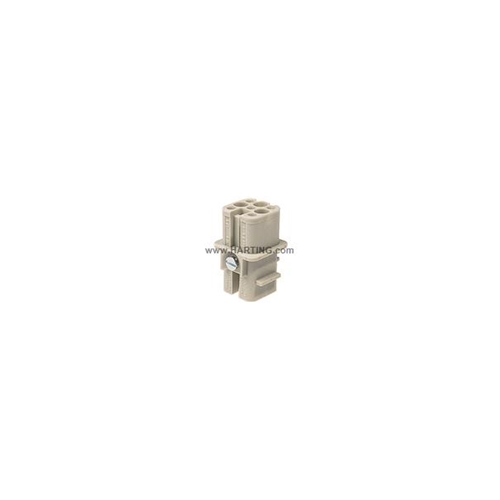

HARTING 8 PIN FEMALE INSERT

Harting

Your cart total:

.

Checkout

0

09360083101










































Gender:Male
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Yes
Size:3 A
Series:Han D
Termination Method:Crimp terminal
Number of Contacts:8
Hint:Order crimp contacts separately.for thermoplastics and metal hoods/housings
Rated Voltage AC:50 V
Rated Voltage DC:120 V
Rated Current, Wrap Terminal:2 A
Rated Voltage, Wrap Terminal:30 V
Contact Identification, Min.:1
Contact Identification, Max.:8
Rated Current:10A
Rated Voltage:50 V
Rated Impulse Voltage:0.8 kV
Pollution Degree:3
Colour, Insert:RAL 7032 (light grey)
Material, Insert:polyamide
Net Weight:7.8 g
Flammability Insert Acc. to UL 94:HB
Rated Voltage Acc. to CSA:50 V
Rated Voltage Acc. to UL:50 V
Approval UL:Yes
Approval CSA:Yes
Approval GL:Yes
Specification:DIN EN 60 664-1DIN EN 61 984DIN EN 175 301-801
Series, Insert:Han 8 D
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make :Harting
Series:Han 8D MALE INSERT CRIMP
Height (mm):21
Width (mm):21
Depth (mm):33.5
Net Weight:7.8 g

No extended details available.
