09340102716

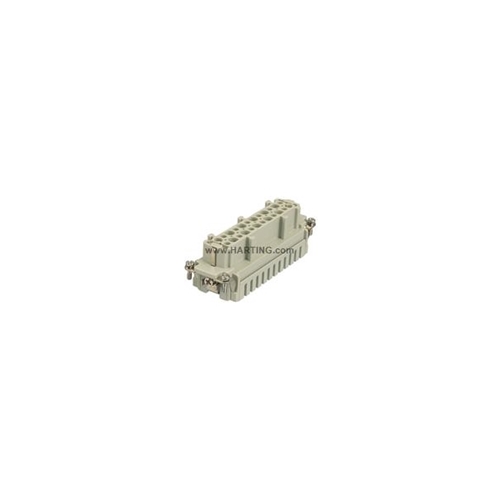

HARTING HVES 10POS F INSERT CAGE CLAMP

TERMINALS

Harting

Your cart total:

.

Checkout

0

09340102716
















































Gender:Female
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Please contact our customer service
Size:24 B
Series:Han Hv ES
Termination Method:Cage-clamp terminal
Additional Contacts:+ 2 additional contacts for safe high voltage connections
Number of Contacts:10
Number of Contacts, Additional Data:2
Hint:not plug compatible to Han Hv E screw/crimp terminal
Contact Resistance:<= 3 mOhm
Contact Identification, Min.:1
Contact Identification, Max.:24
Wire Gauge mm² Min.:0.14 mm2
Wire Gauge, Max.:2.5 mm2
Rated Current:16 A
Rated Voltage:830 V
Rated Impulse Voltage:8 kV
Pollution Degree:3
Rated Current, Relay Contact, Pollution Degree 3:16 A
Rated Voltage, Relay Contact, Pollution Degree 3:500 V
Rated Impulse Voltage, Relay Contact, Pollution Degree 3:6 kV
Colour, Insert:RAL 7032 (light grey)
Material, Contact:copper alloy
Material, Insert:polycarbonate
Surface, Contacts:silver plated contacts
Flammability Insert Acc. to UL 94:V 0
Rated Voltage Acc. to CSA:600 V
Rated Voltage Acc. to UL:600 V
Approval UL:Yes
Approval CSA:Yes
Rated Voltage Acc. to UL, Relay Contact:250 V
Rated Voltage Acc. to CSA, Relay Contact:250 V
Specification:DIN EN 61 984DIN EN 61 984
Series, Insert:Han 10 Hv ES
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make :Harting
Product Range :Han HvES 10 Pos. F Insert Cage Clamp Ter
Height (mm):34
Width (mm):111
Depth (mm):35.6
Net Weight:104 g

No extended details available.
