09340102702

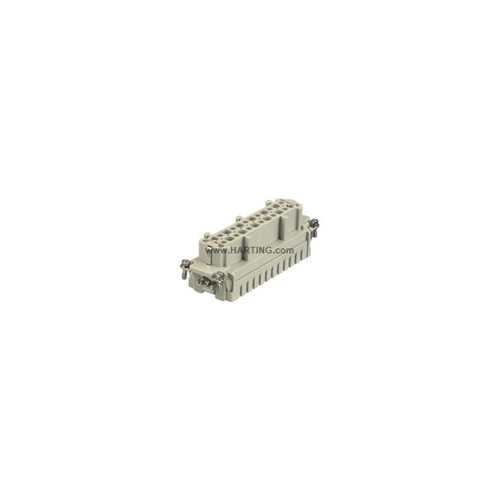

HARTING HAN HVE 10 POS F INSERT CRIMP

Your cart total:

.

Checkout

0

09340102702











































Gender:Female
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Yes
Size:24 B
Series:Han Hv E
Termination Method:Crimp terminal
Additional Contacts:+ 2 additional contacts for safe high voltage connections
Number of Contacts:10
Number of Contacts, Additional Data:2
Hint:Order crimp contacts separately.
Contact Identification, Min.:1
Contact Identification, Max.:24
Rated Current:16 A
Rated Voltage:830 V
Rated Impulse Voltage:8 kV
Pollution Degree:3
Rated Current:16 A
Rated Voltage:500 V
Rated Impulse Voltage:6 kV
Colour, Insert:RAL 7032 (light grey)
Material, Insert:polycarbonate
Flammability Insert Acc. to UL 94:V 0
Rated Voltage Acc. to CSA:600 V
Rated Voltage Acc. to UL:600 V
Approval UL:Yes
Approval CSA:Yes
Rated Voltage Acc. to UL, Relay Contact:250 V
Rated Voltage Acc. to CSA:250 V
Specification:DIN EN 61 984DIN EN 61 984
Series, Insert:Han 10 Hv E
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make :Harting
Product Range :Han HvE 10 Pos. F Insert Crimp
Height (mm):34
Width (mm):111
Depth (mm):35.5
Net Weight:81.2 g
