09340060301

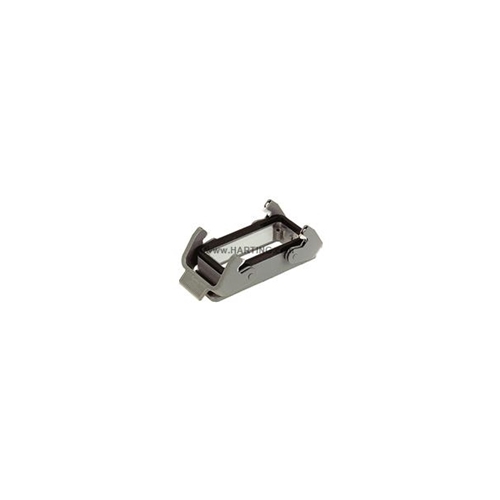

HARTING BULKHEAD HOUSING

Harting

Your cart total:

.

Checkout

0

09340060301


























RoHS Conformity:Yes
Size:16 B
Locking Type:2 levers on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:double locking lever
Type of Hood - Housing:Housings, bulkhead mounting
Series:Han Hv E
Surface, Hood - Housing:powder-coated
Material, Hood - Housing:aluminium die-cast
Housing:Yes
Style:Low construction
Flammability Locking Lever acc. to UL 94:V 0
Protection Class acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Panel Cut Out (mm x mm):82 x 35
Series, Insert:Han 16 Hv E
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han 6HvE-HBM-double lever
Width (mm):138.4
Depth (mm):57
Net Weight:120.9 g

No extended details available.
