09340032701

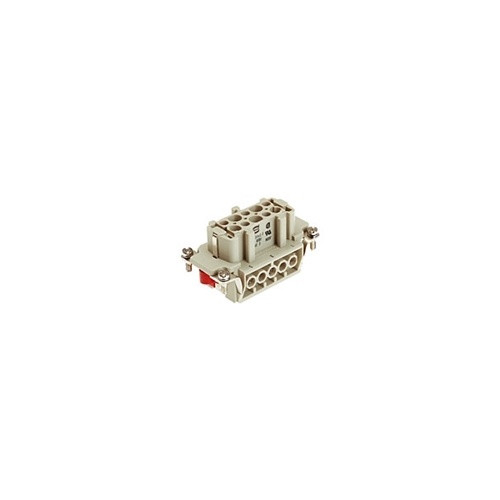

HARTING 5 PIN FEMALE INSERT

Harting

Your cart total:

.

Checkout

0

09340032701



















































Gender:female
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Yes
Size:10 B
Series:Han Hv E
Termination Method:Screw terminal
Additional Contacts:+ 2 additional contacts for safe high voltage connections
Number of Contacts:3
Number of Contacts, Additional Data:2
Contact Resistance:<= 1 mOhm
Contact Identification, Min.:1
Contact Identification, Max.:10
Wire Gauge mm² Min.:0.75 mm2
Wire Gauge, Max.:2.5 mm2
Wire Gauge AWG, Min.:AWG 18
Wire Gauge AWG, Max.:AWG 14
Rated Current:16 A
Rated Voltage:830 V
Rated Impulse Voltage:8 kV
Pollution Degree:3
Rated Current:16 A
Rated Voltage:500 V
Rated Impulse Voltage:6 kV
Colour, Insert:RAL 7032 (light grey)
Material, Contact:Copper alloy
Material, Insert:Polycarbonate
Surface, Contacts:Silver plated contacts
Flammability Insert Acc. to UL 94:V 0
Rated Voltage Acc. to CSA:600 V
Rated Voltage Acc. to UL:600 V
Approval UL:Yes
Approval CSA:Yes
Rated Voltage Acc. to UL, Relay Contact:250 V
Rated Voltage Acc. to CSA, Relay Contact:250 V
Specification:DIN EN 61 984DIN EN 61 984
Series, Insert:Han 3 Hv E
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Stripping Length, Min:7.5 mm
Tightening Torque:0.5 Nm
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make:Harting
Product Range :Han HvE 3 Pos. F Insert Screw
Height (mm):34
Width (mm):64
Depth (mm):34.6
Net Weight:59.2 g

No extended details available.
