09330244625

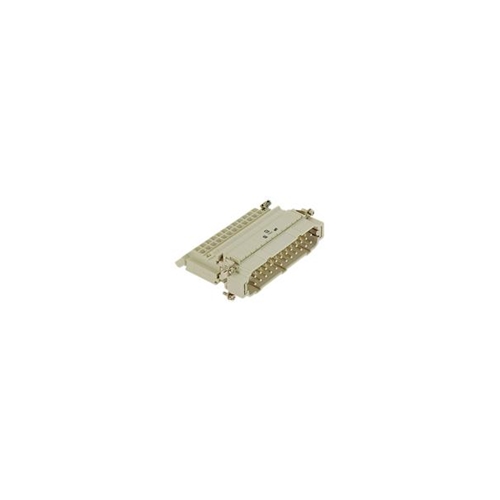

Harting Han E AV 24 Pos. M Insert Term

Block Lef

Harting

Your cart total:

.

Checkout

0

09330244625















































Gender:Male
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Please contact our customer service
Size:24 B
Test Voltage:3 kV
Type:Left hand version
Outline:Multi contour (MK)
Series:Terminal Block Connectors
Termination Method:Screw terminal
Number of Contacts:24
Contact Resistance:<= 4 mOhm
Contact Identification, Min.:1
Contact Identification, Max.:24
Wire Gauge mm² Min.:0.2 mm2
Wire Gauge, Max.:2.5 mm2
Wire Gauge AWG, Min.:AWG 24
Wire Gauge AWG, Max.:AWG 14
Rated Current:16 A
Rated Voltage:500 V
Rated Impulse Voltage:6 kV
Pollution Degree:3
Colour, Insert:RAL 7032 (light grey)
Material, Contact:copper alloy
Material, Insert:polycarbonate
Surface, Connection Area:tin plated contacts
Surface, Contacts:silver plated contacts
Flammability Insert Acc. to UL 94:V 0
Rated Voltage Acc. to UL:600 V
Approval UL:Yes
Approval CSA:Yes
Approval GL:Yes
Specification:DIN EN 60 664-1DIN EN 61 984
Series, Insert:Han E AV / Han ES AV
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Tightening Torque:0.5 Nm
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make:Harting
Product Range :Han E AV 24 Pos. M Insert Term Block Lef
Height (mm):80
Width (mm):102.3
Depth (mm):34
Net Weight:236.5 g
