09330242716

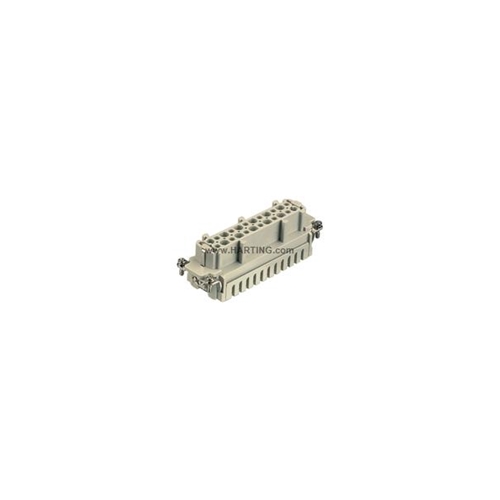

HARTING 24 PIN FEMALE INSERT (1-24)

Harting

Your cart total:

.

Checkout

0

09330242716











































Gender:female
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Yes
Size:24 B
Series:Han ES
Termination Method:Cage-clamp terminal
Number of Contacts:24
Contact Resistance:<= 1 mOhm
Contact Identification, Min.:1
Contact Identification, Max.:24
Wire Gauge mm² Min.:0.14 mm2
Wire Gauge, Max.:2.5 mm2
Wire Gauge AWG, Min.:AWG 26
Wire Gauge AWG, Max.:AWG 14
Rated Current:16 A
Rated Voltage:500 V
Rated Impulse Voltage:6 kV
Pollution Degree:3
Colour, Insert:RAL 7032 (light grey)
Material, Contact:copper alloy
Material, Insert:polycarbonate
Surface, Contacts:silver plated contacts
Flammability Insert Acc. to UL 94:V 0
Rated Voltage Acc. to CSA:600 V
Rated Voltage Acc. to UL:600 V
Approval UL:Yes
Approval CSA:Yes
Approval GL:Yes
Specification:DIN EN 60 664-1DIN EN 61 984
Series, Insert:Han 24 ES
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make:Harting
Product Range :Han 24 ES Insert-F
Height (mm):34
Width (mm):111
Depth (mm):36
Net Weight:123.9 g
