09330162711

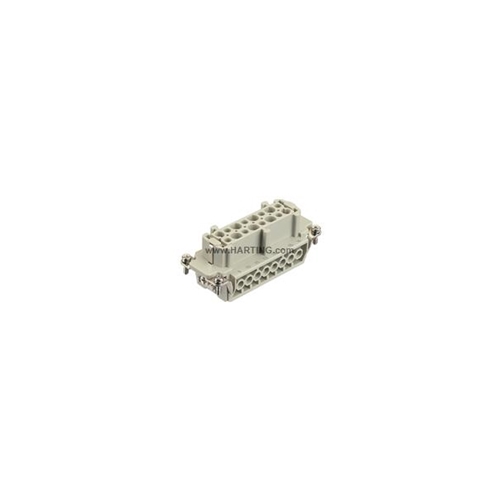

HARTING 16 PIN FEMALE INSERT (17-32)

Harting

Your cart total:

.

Checkout

0

09330162711











































Gender:Female
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Yes
Size:16 B
Series:Han E
Termination Method:Screw terminal
Wire Protection:Yes
Number of Contacts:16
Contact Identification, Min.:17
Contact Identification, Max.:32
Wire Gauge mm² Min.:0.75 mm2
Wire Gauge, Max.:2.5 mm2
Wire Gauge AWG, Min.:AWG 18
Wire Gauge AWG, Max.:AWG 14
Rated Current:16 A
Rated Voltage:500 V
Rated Impulse Voltage:6 kV
Pollution Degree:3
Colour, Insert:RAL 7032 (light grey)
Material, Insert:Polycarbonate
Flammability Insert Acc. to UL 94:V 0
Rated Voltage Acc. to CSA:600 V
Rated Voltage Acc. to UL:600 V
Approval UL:Yes
Approval CSA:Yes
Approval GL:Yes
Specification:DIN EN 60 664-1DIN EN 61 984
Series, Insert:Han 16 E
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Stripping Length, Min:7.5 mm
Tightening Torque, Max.:0.5 Nm
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make:Harting
Product Range :Han 32E insert female screw (17-32)
Height (mm):34
Width (mm):84.5
Depth (mm):34.6
Net Weight:92 g

No extended details available.
