09330162702

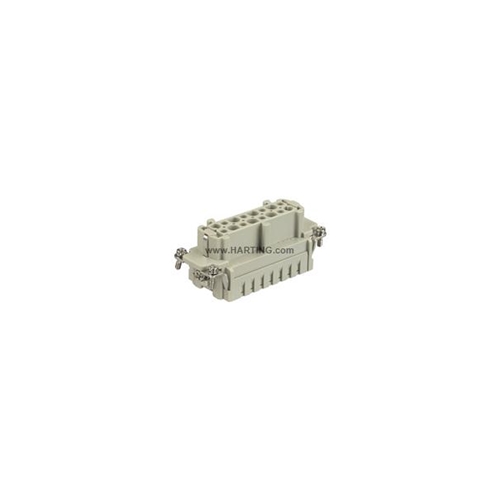

HARTING 16 PIN FEMALE INSERT (1-16)

Harting

Your cart total:

.

Checkout

0

09330162702





































Gender:Female
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Yes
Size:16 B
Series:Han E
Termination Method:Crimp terminal
Number of Contacts:16
Hint:Order crimp contacts separately.
Contact Identification, Min.:1
Contact Identification, Max.:16
Rated Current:16 A
Rated Voltage:500 V
Rated Impulse Voltage:6 kV
Pollution Degree:3
Colour, Insert:RAL 7032 (light grey)
Material, Insert:polycarbonate
Flammability Insert Acc. to UL 94:V 0
Rated Voltage Acc. to CSA:600 V
Rated Voltage Acc. to UL:600 V
Approval UL:Yes
Approval CSA:Yes
Approval GL:Yes
Specification:DIN EN 60 664-1DIN EN 61 984
Series, Insert:Han 16 E
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make:Harting
Product Range :Han 16E Insert Female Crimp
Height (mm):34
Width (mm):84.5
Depth (mm):35.5
Net Weight:64.6 g

No extended details available.
