09330162626

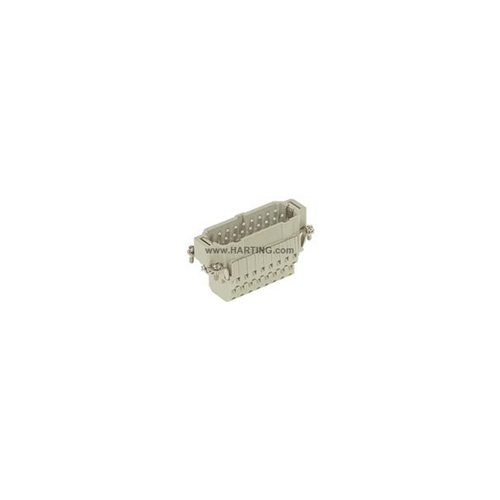

HARTING HAN ES 16 POS. M INSERT CAGECLAM

Harting

Your cart total:

.

Checkout

0

09330162626











































Gender:male
Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Please contact our customer service
Size:16 B
Series:Han ES
Termination Method:Cage-clamp terminal
Number of Contacts:16
Contact Resistance:<= 1 mOhm
Contact Identification, Min.:17
Contact Identification, Max.:32
Wire Gauge mm² Min.:0.14 mm2
Wire Gauge, Max.:2.5 mm2
Wire Gauge AWG, Min.:AWG 26
Wire Gauge AWG, Max.:AWG 14
Rated Current:16 A
Rated Voltage:500 V
Rated Impulse Voltage:6 kV
Pollution Degree:3
Colour, Insert:RAL 7032 (light grey)
Material, Contact:Copper alloy
Material, Insert:polycarbonate
Surface, Contacts:silver plated contacts
Flammability Insert Acc. to UL 94:V 0
Rated Voltage Acc. to CSA:600 V
Rated Voltage Acc. to UL:600 V
Approval UL:Yes
Approval CSA:Yes
Approval GL:Yes
Specification:DIN EN 60 664-1DIN EN 61 984
Series, Insert:Han 16 ES
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make :Harting
Product Range:Han ES 16 POS. M INSERT CAGECLAMP
Height (mm):34
Width(mm):84.5
Depth(mm):34
Net Weight:84.15 g

No extended details available.
