09330160401

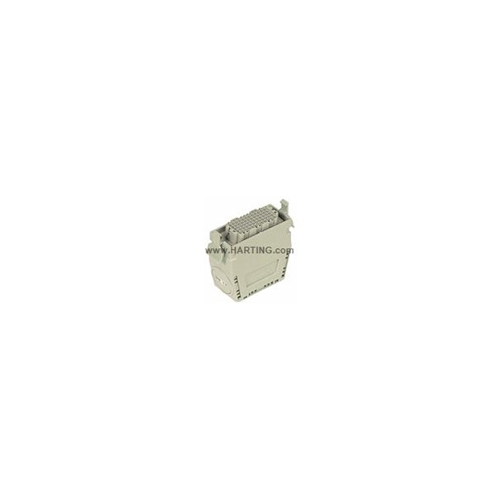

HARTING HOOD 16 WAY

Your cart total:

0

09330160401
























RoHS Conformity:Yes
Size:16 B
Footer:Size 16 A by using the corresponding adapter
Locking Type:Han-Snap locking
Type of Hood - Housing:Plastic housings
Series:Han-Snap
Colour, Hood - Housing:RAL 7032 (light grey)
Material, Hood - Housing:Thermoplastic resin, polycarbonate
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Flammability Hoods - Housings Acc. to UL 94:V 0
Degree of Protection Acc. to DIN EN 60 529:IP20
Vibration Resistance:IEC 60 068, part 2-6BN 74018
Shock Immunity:IEC 60 068, part 2-27BN 74018
Retention force, Min.:300 N
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make :Harting
Product Range :Han Snap Plastic Housing Size 16
Height (mm):90
Width (mm):112
Depth (mm):43
Net Weight:79.5 g

No extended details available.
