08316

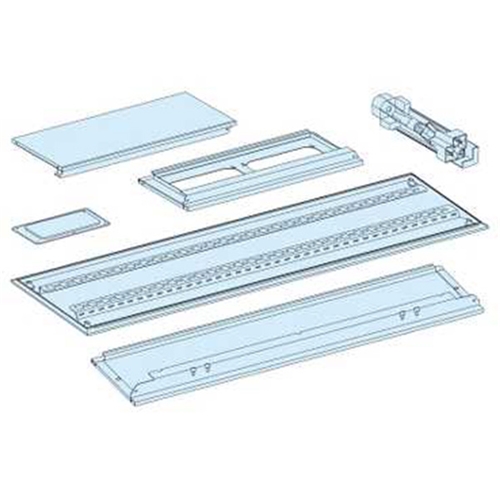

SCHNEIDER MOD Front Plate

Schneider Electric

Your cart total:

.

Checkout

Discontinued

08316

















Range of product:Prisma Plus System G
Product or component type:Enclosure extension
Number of vertical modules (50 mm):23
Enclosure/cubicle description:Wall-mounted enclosure: 600 mm
Rated Insulation Voltage:1000 V on main rear busbars conforming to IEC 60439-1
Rated operational current:630 A at 40 °C
Rated short-time withstand current:25 kA (1 s) conforming to IEC 60439-1
Rated peak withstand current:53 kA conforming to IEC 60439-1
Network frequency:50/60 Hz
Additional information:Can be combined side by side and one on top of another
Height mm:1250
Width mm:600
Depth mm:260
Weight kg:10.3

No extended details available.
