08213

















Range of product:Prisma Plus System G

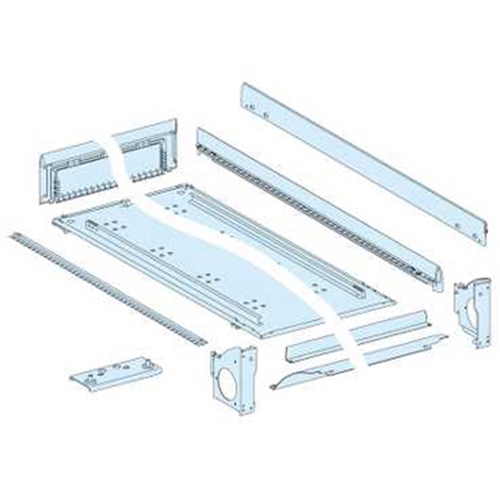

Product or component type:Enclosure extension
Number of vertical modules (50 mm):30
Enclosure/cubicle description:Floor-standing enclosure: 600 mm
Rated Insulation Voltage:1000 V on main rear busbars conforming to IEC 60439-1
Rated operational current:630 A at 40 °C conforming to IEC 60439-1
Rated short-time withstand current:25 kA (1 s) conforming to IEC 60439-1
Rated peak withstand current:53 kA conforming to IEC 60439-1
Network frequency:50/60 Hz
Additional information:Can be combined side by side and one on top of another
Height mm:1680
Width mm:600
Depth mm:205
Weight kg:19.06
