08174


SCHNEIDER Duct

Schneider Electric

Your cart total:

.

Checkout

Discontinued

08174

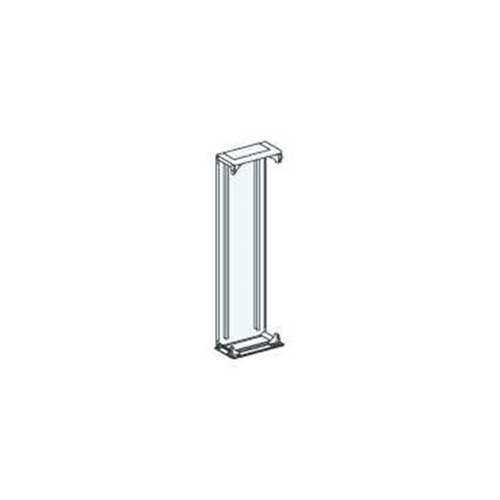

Description:Duct for Wall-mounted enclosure
Range of product:Prisma Plus System G
Product or component type:Duct
Number of vertical modules (50 mm):12
Enclosure/cubicle description:Wall-mounted duct: 300 mm
Rated Insulation Voltage:1000 V on main rear busbars conforming to IEC 60439-1
Rated operational current:630 A at 40 °C conforming to IEC 60439-1
Rated short-time withstand current:25 kA (1 s) conforming to IEC 60439-1
Rated peak withstand current:53 kA conforming to IEC 60439-1
Network frequency:50/60 Hz
Additional information:Can be combined side by side and one on top of another
Height mm:630
Width mm:300
Depth mm:205
Weight kg:6.04

No extended details available.
