08109

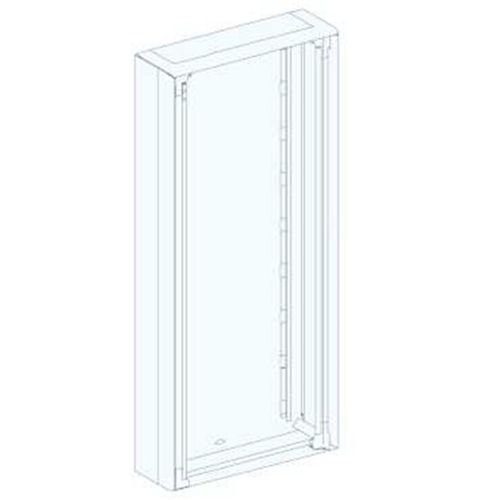

SCHNEIDER WALL MOUNTING ENC W600 27M

Schneider Electric

Your cart total:

.

Checkout

Discontinued

08109

















Range of product:Prisma Plus System G
Product or component type:Enclosure
Number of vertical modules (50 mm):27
Enclosure/cubicle description:Wall-mounted enclosure: 600 mm
Rated insulation voltage:1000 V on main rear busbars conforming to IEC 60439-1
Rated operational current:630 A at 40 °C conforming to IEC 60439-1
Rated short-time withstand current:25 kA (1 s) conforming to IEC 60439-1
Rated peak withstand current:53 kA conforming to IEC 60439-1
Network frequency:50/60 Hz
Additional information:Can be combined side by side and one on top of another
Height mm:1380
Width mm:600
Depth mm:205
Weight kg:18.02

No extended details available.
