04121

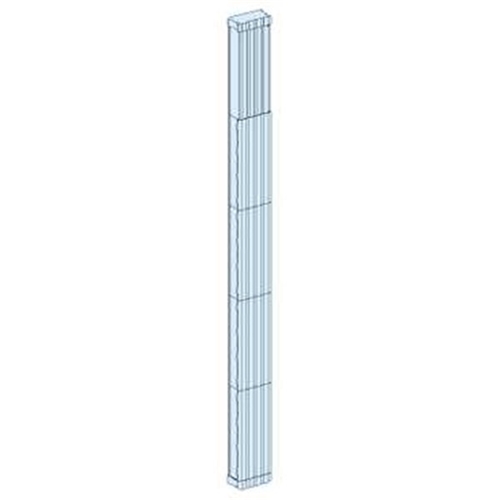

SCHNEIDER POWERCLIP BUSB.160A 4P

Schneider Electric

Your cart total:

.

Checkout

Discontinued

04121


















Product or component type:Busbar
Busbar Description :Insulated bar
Provided equipment:Clip-on covers
Poles description:4P
Busbar position:Rear
Installation direction:Vertical
Enclosure/cubicle description:Pack enclosure
Cubicle: 650 mm
Floor-standing enclosure: 600 mm
Wall-mounted enclosure: 600 mm
Wall-mounted duct: 300 mm
Floor-standing duct: 300 mm
Rated insulation voltage:750 V
Rated impulse withstand voltage:8 kV
Rated operational current:160 A
Rated short-time withstand current :10 kA (1 s)
Rated peak withstand current:30 kA
Permissible current:160 A
Type of busbar connection:M6 threaded hole
Weight kg:3.98

No extended details available.
